HYDRAULIC FRACKING CAUSES EARTHQUAKES: PADEP Finds Spatial/Temporal Correlation between Hilcorp Hydraulic Fracturing and April 2016 Seismic Events in Lawrence County






COMMONWEALTH OF PENNSYLVANIA
Dept. of Environmental Protection

Commonwealth News Bureau
Room 308, Main Capitol Building
Harrisburg PA., 17120

FOR IMMEDIATE RELEASE
02/17/2017
CONTACT:
Deborah Klenotic, DEP
717-787-9954


PADEP Finds Spatial/Temporal Correlation between Hilcorp Hydraulic Fracturing and April 2016 Seismic Events in Lawrence County



Meadville, PA – Seismic events that occurred in western Lawrence County on April 25, 2016, were likely correlated to natural gas hydraulic fracturing by Hilcorp Energy Company, according to a report by the Pennsylvania Department of Environmental Protection (DEP).

“Induced seismicity is a relatively new and complex technical issue,” said DEP Acting Secretary Patrick McDonnell. “This report reflects our commitment to understand what occurred, through extensive review with scientific and industry partners, and to formulate procedures to reduce seismic risk going forward.”

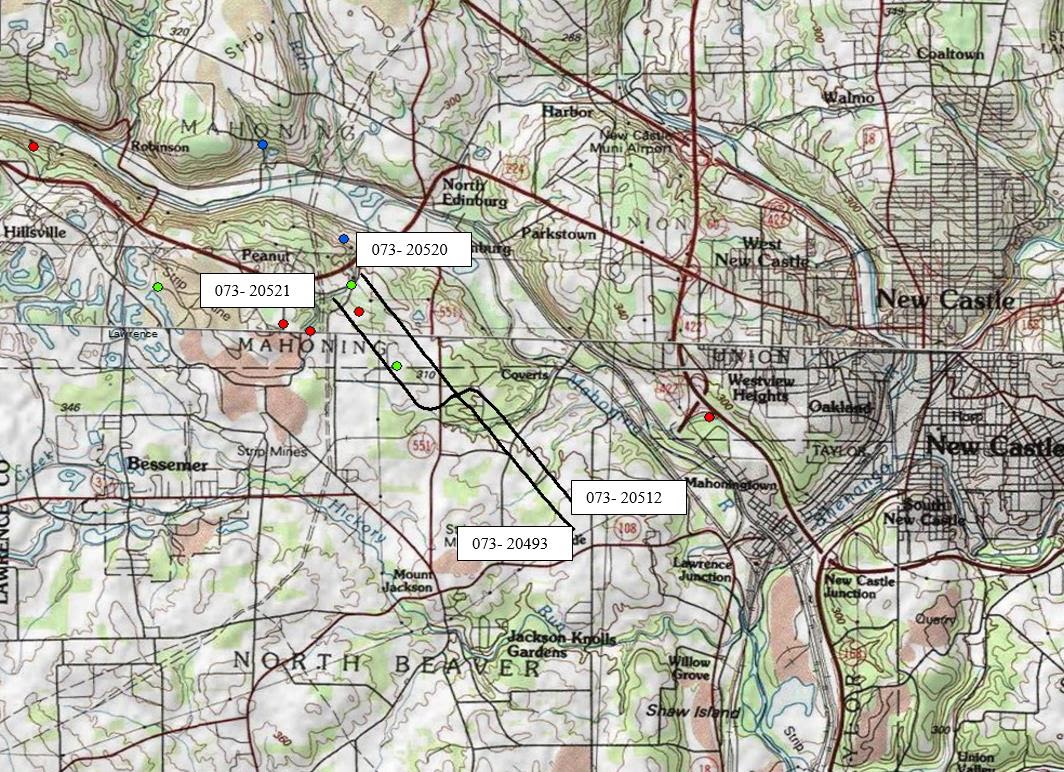

A series of low-magnitude earthquakes that began at 4:17 a.m. in North Beaver, Union, and Mahoning Townships showed a “marked temporal/spatial relationship” to hydraulic fracturing activities at Hilcorp’s North Beaver NC Development well pad.

The Pennsylvania Seismic Network registered four earthquakes. (OhioSeis recorded three earthquakes, and Lamont-Doherty Cooperative Seismic Network recorded five.) The final magnitude of the earthquakes ranged from 1.8 to 2.3 on the Richter Scale, putting them in the category of microseismic events, which are likely to go unnoticed by humans and only recorded by sensitive seismic monitors.

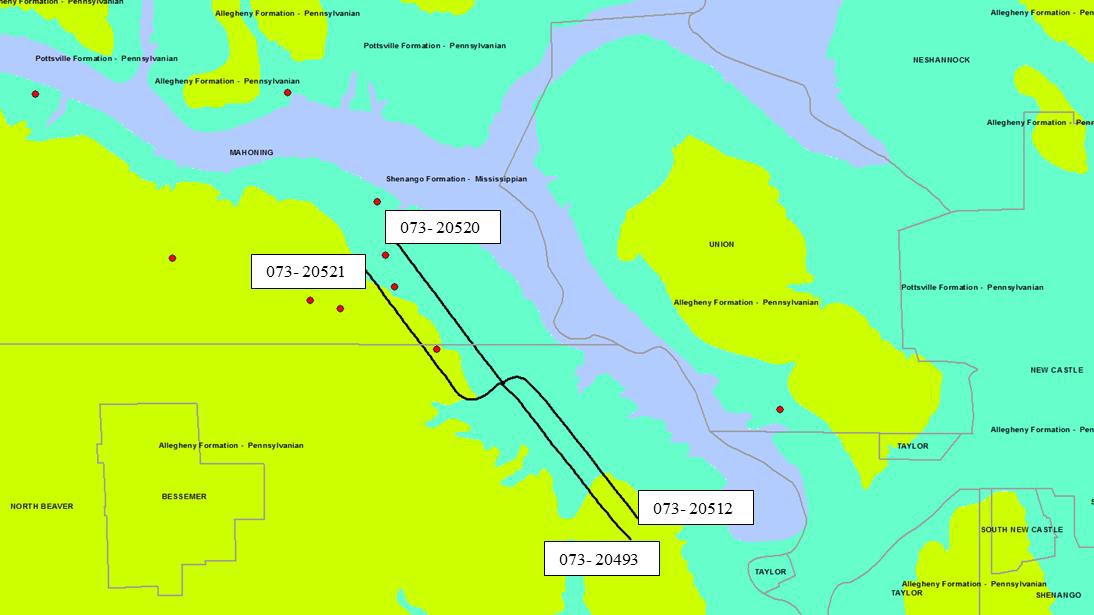

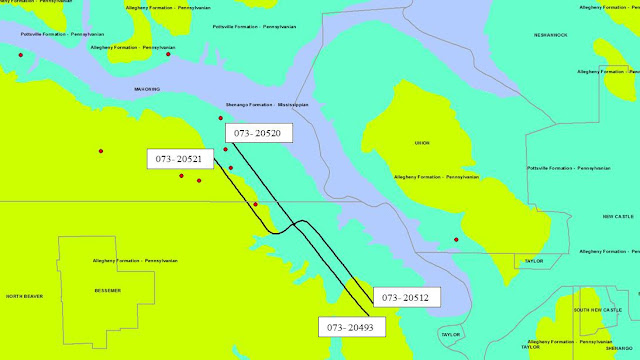

The Hilcorp pad, which includes four wells drilled into the Utica Shale Formation, lies within a five-mile radius of the reported epicenters. Hydraulic fracturing activities began at the pad on March 30.

Hilcorp was using a technique known as “zipper fracturing,” or hydraulic fracturing operations that are carried out concurrently at two horizontal wellbores that are parallel and adjacent to each other. When DEP contacted Hilcorp on April 25, the company voluntarily stopped activities and later reported they would discontinue hydraulic fracturing and stimulation operations at the well pad indefinitely.

Recommendations in the DEP report include discontinuation of the practice of zipper fracturing during any future completions when there is less than a ¼ mile between lateral portions of adjacent wellbores. This applies to Hilcorp’s Utica gas wells in North Beaver, Union, and Mahoning Townships. Zipper fracturing is allowed when there is more than ¼ mile distance between lateral portions.

In addition, it is recommended that Hilcorp maintain operation of its own seismic network within these townships. The seismic network will allow for the accurate detection of local, low-magnitude events.

A seismic event reporting schedule and operator response plan is also included in DEP’s recommendations:

•    For seismic events of 1.0 or greater magnitude occurring within 6 miles of the wellbore path, the company should notify DEP within 10 minutes via email and within one hour by telephone.
•    For any succession of three seismic events of 1.5 to 1.9 magnitude that occurs within a three-consecutive-day period and within a 3-mile radius of the wellbore path, Hilcorp should notify the DEP within 10 minutes via email and within one hour by telephone. Actions taken for this magnitude range of seismic events include suspension of stimulation operations, submittal of seismic data to DEP for review and a plan detailing modifications to stimulation operations.
•    Finally, for any seismic event of 2.0 or greater magnitude that occurs within a 3-mile distance of a wellbore path, Hilcorp should notify the DEP within 10 minutes via email and within one hour by telephone.  Actions taken include cessation of stimulation operations, flowing back of the well, submittal of seismic data to DEP for review and a plan detailing any potential modification to stimulation operations.

On November 16, 2016, DEP approved a seismic monitoring plan submitted by Hilcorp implementing the recommendations set forth in the DEP report.

DEP has also recommended that these terms apply to any new permits requested by Hilcorp and that other operators follow similar plans within the referenced townships.

See the DEP website for the report, a webinar discussion, and more information on the seismic events


=====



Hilcorp halts fracking at Lawrence County shale site near earthquake



A natural gas company voluntarily halted fracking activity on a Marcellus shale well in Lawrence County this week while state officials investigate a minor, nearby earthquake.

Houston-based Hilcorp Energy stopped fracking one of the four wells it drilled on its North Beaver NC Development pad west of New Castle about noon Monday, hours after a 1.9 magnitude earthquake was detected nearby in Mahoning.

The Department of Environmental Protection is investigating the tremor with the Department of Conservation and Natural Resources, said DEP spokeswoman Melanie Williams.

A spokesman for Hilcorp did not respond to questions on Wednesday.

Researchers and industry officials have for several years debated a potential connection between fracking and earthquakes. Studies have connected swarms of earthquakes to underground injection wells into which companies deposit wastewater from fracking, which uses high-pressure water and sand to break up and prop open shale to release gas and oil thousands of feet below ground.

State officials say they have found no links between oil and gas operations and earthquakes in Pennsylvania since the shale drilling boom began a decade ago.

Pennsylvania has become the second largest gas producer in the country but has fewer than 10 injection wells for wastewater storage.

DEP and DCNR said last year they would increase monitoring for earthquakes in areas of oil and gas development.

In 2014, authorities in Ohio stopped operations at a Hilcorp site in Poland Township — less than 10 miles from Mahoning — because five earthquakes ranging from 2.1 to 3.0 magnitude happened close to that pad.

Hilcorp had finished fracking two of the wells on the Mahoning pad, Williams said. Crews stopped work on the remaining wells and were removing all equipment from the site, she said.
